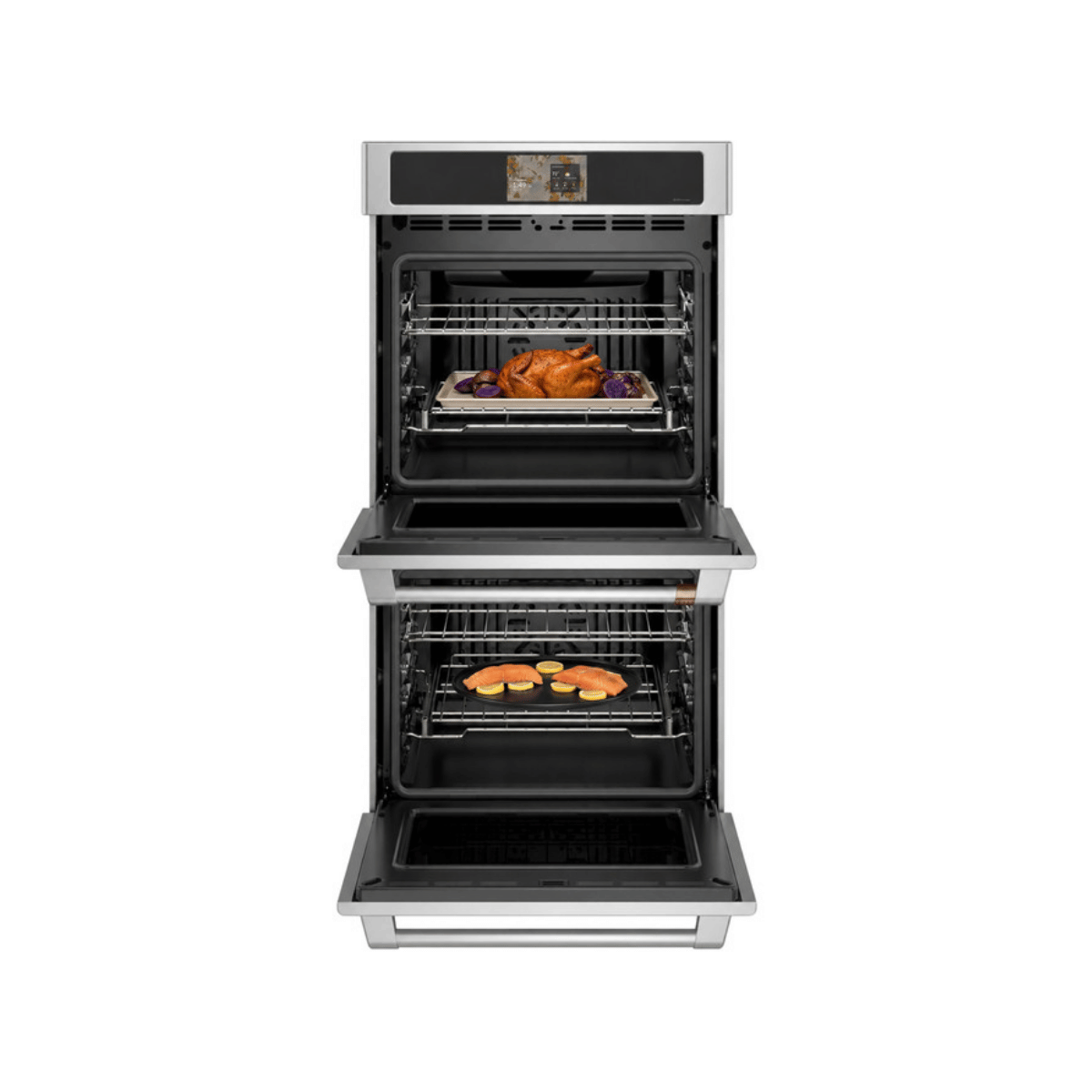

This Café wall oven pairs two independent ovens in one unit, giving you the flexibility to cook two dishes at different temperatures at once. The 27″ model delivers top down True European Convection in the upper oven paired with a traditional lower oven, for 8.6 cu. ft. of combined capacity. The 30″ model steps up to True European Convection with Direct Air in the upper oven and True European Convection in the lower oven, for 10.0 cu. ft. of combined capacity. Both sizes deliver consistent results on roasts, chicken, and other special occasion favorites.
Precision Cooking Modes, including Artisan Pizza, Turkey, and Steak, use tailored temperature and fan adjustments developed by Café’s cooking scientists to track food progress and dynamically adjust time and temperature. Air Fry Mode crisps food without added oil, and a temperature probe helps track doneness on roasts and meats.
A 7″ full color touch LCD screen controls the oven and displays recipes, cooking instructions, streaming audio, and weather via WiFi. A built in premium Bluetooth speaker lets you stream music or podcasts while you cook. The SmartHQ app allows remote preheating and temperature changes from anywhere.

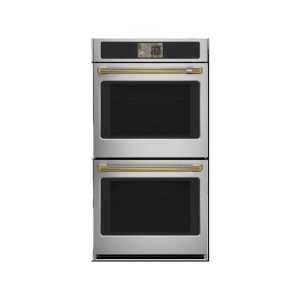

Both sizes are currently available in Stainless Steel, with a choice of handle color to personalize the look. Both sizes are compatible with above warming drawer or side by side installations.
Key Features
- Two independent ovens for cooking at two temperatures at once
- True European Convection in both ovens (Direct Air on the 30″ upper oven)
- 7″ full color touch LCD screen
- Precision Cooking Modes and Air Fry Mode
- Built in premium Bluetooth speaker
- Self Clean with optional Steam Clean, both ovens
- Built in WiFi with SmartHQ app; requires one time WiFi connection to activate all features
Size Options
| Model | Size | Capacity | Finish | Handle Color Options |
|---|---|---|---|---|
| CKD70DP2ZS1 | 27″ | 8.6 cu. ft. total (4.3 upper / 4.3 lower) | Stainless Steel | Brushed Bronze, Brushed Stainless, Brushed Black, Brushed Copper, Brushed Brass, Flat Black |
| CTD70DP2ZS1 | 30″ | 10.0 cu. ft. total (5.0 upper / 5.0 lower) | Stainless Steel | Brushed Bronze, Brushed Stainless, Brushed Black, Brushed Copper, Brushed Brass, Flat Black |
Specifications
| Spec | CKD70DP2ZS1 (27″) | CTD70DP2ZS1 (30″) |
|---|---|---|
| Dimensions (H x W x D) | 51-1/8″ x 26-3/4″ x 26-5/8″ | 53″ x 29-3/4″ x 26-3/4″ |
| Cutout (W x H x D) | 25-1/4″ x 50-1/8″ x 23-1/2″ | 28-1/2″ x 51-13/16″ x 23-1/2″ |
| Power/Voltage | 208V/240V, 30 amp; 5.4 to 7.2 kW | 208V/240V, 40 amp; 6.5 to 8.7 kW |
| Weight | 224 lb net / 245 lb shipping | 260 lb net / 278 lb shipping |
| Finish | Stainless Steel (handle color customizable) | Stainless Steel (handle color customizable) |
| Power Connection | Hardwired (not plug and receptacle) | Hardwired (not plug and receptacle) |
| Certifications | UL Listed | UL Listed |
What’s Included

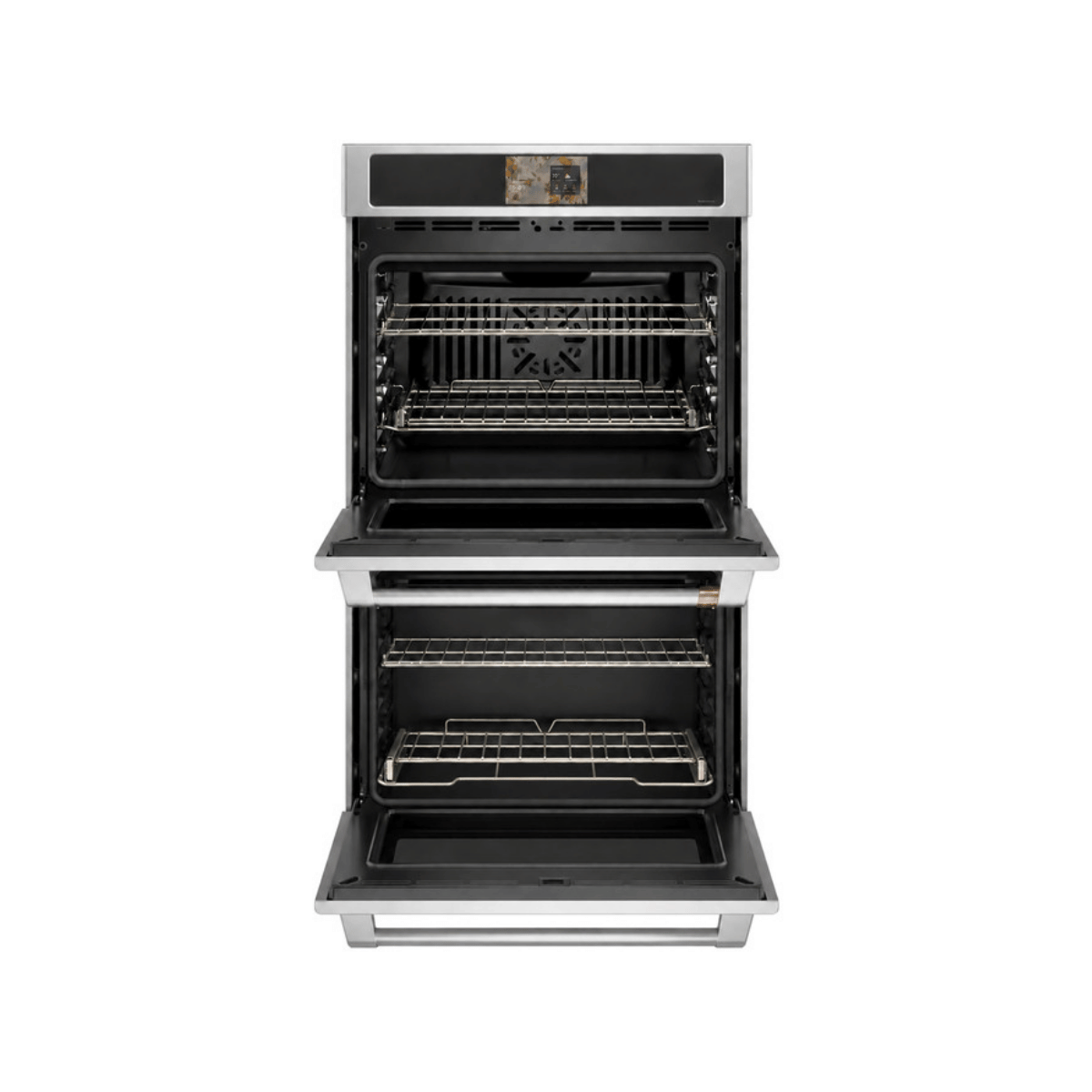

1 heavy duty roller rack, 3 heavy duty flat racks per oven. Optional accessories: never scrub roller rack (size specific, UXWORXR27 or UXWORXR30), large broiler pan (WB48X10056), 60″ or 72″ replacement electrical conduit.
Warranty
Limited 1-year warranty on entire appliance (parts and labor). See full written warranty for details.
