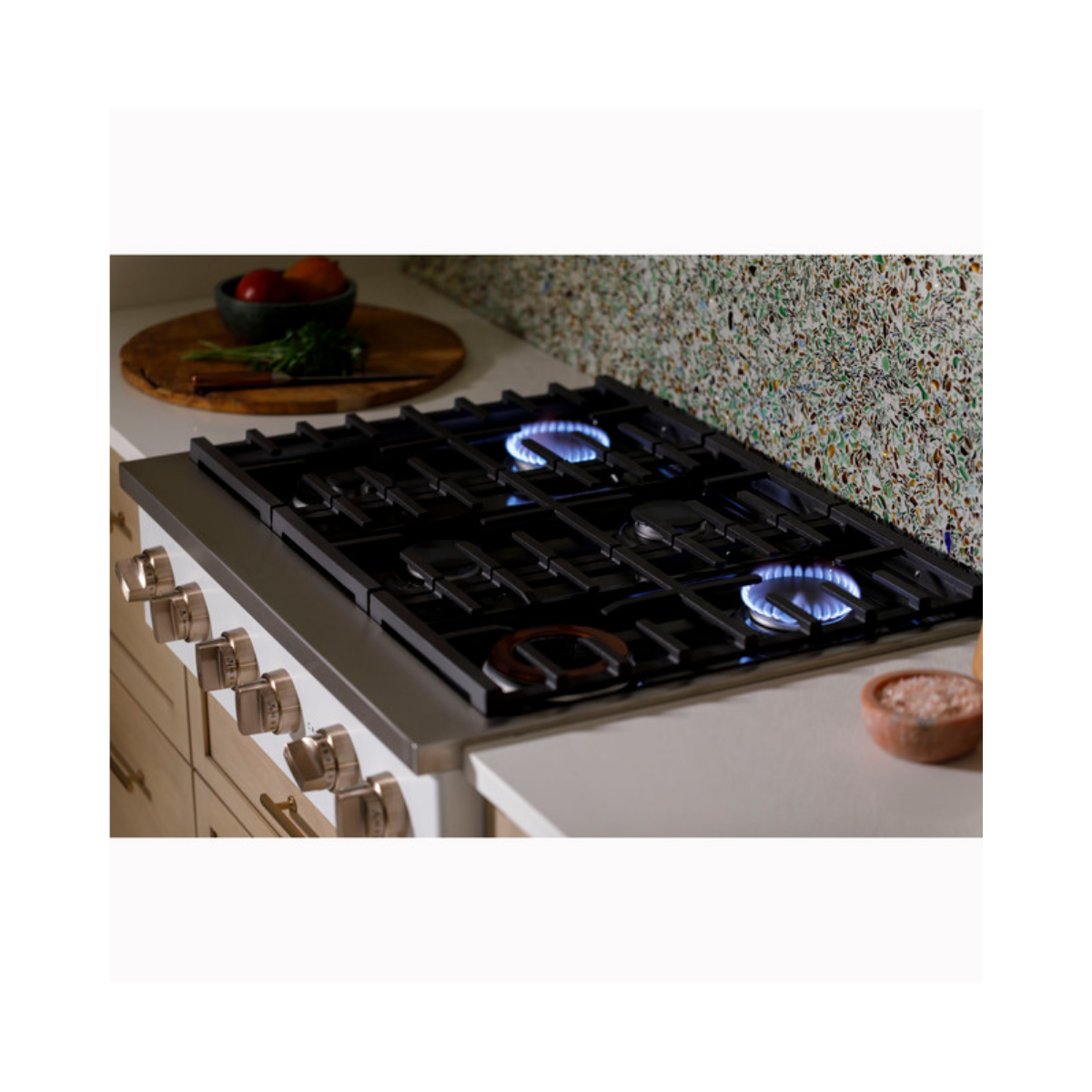

This Café commercial-style gas rangetop brings six sealed burners to the cooktop surface, led by a 21,000 BTU multi-ring burner that offers different sized flame rings on a single burner element for added cooking versatility. Two 18,000 BTU power boil burners bring water to a boil quickly, two 12,000 BTU burners can be used together or separately with an optional griddle grill accessory, and a 10,000 BTU burner rounds out the layout. The industry exclusive Inspiral burner swirls the cooktop flame under cookware to spread heat more evenly from center to edges, and a contoured Inspiral wok grate concentrates that heat for specialty cookware like woks.
Continuous, edge to edge cast iron grates let heavy cookware slide across the entire surface without lifting, and a color matched manifold keeps the control area coordinated with the rangetop’s finish. Electric ignition with automatic reignition keeps burners lit through accidental flameouts, and the sealed burner design contains spills for easier cleanup. Grates and knobs are dishwasher safe, and a manual simmer control from 1 to 9 is available on all burners.

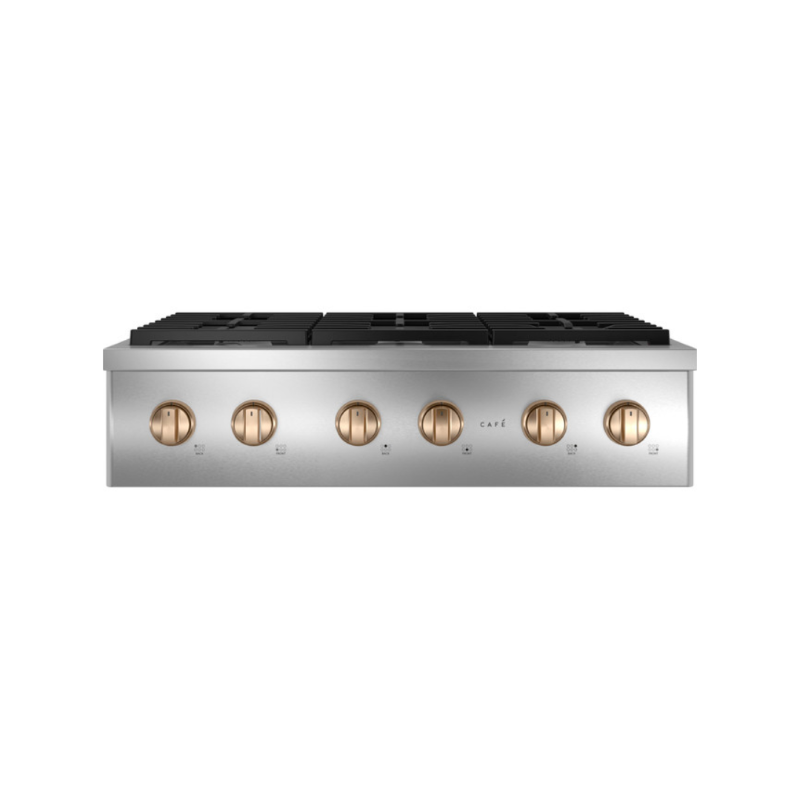

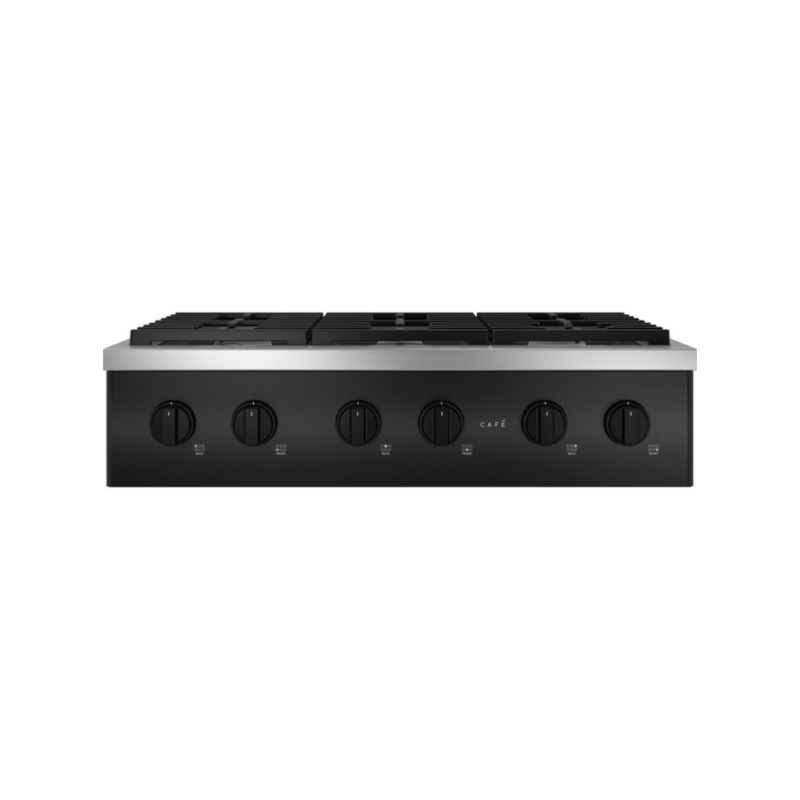

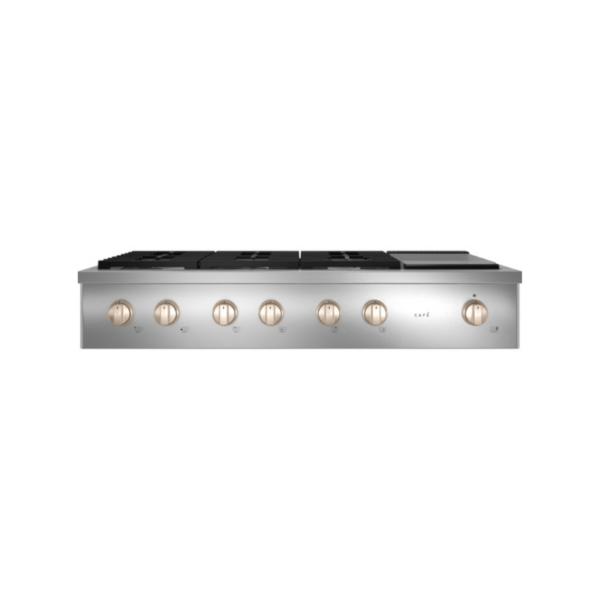

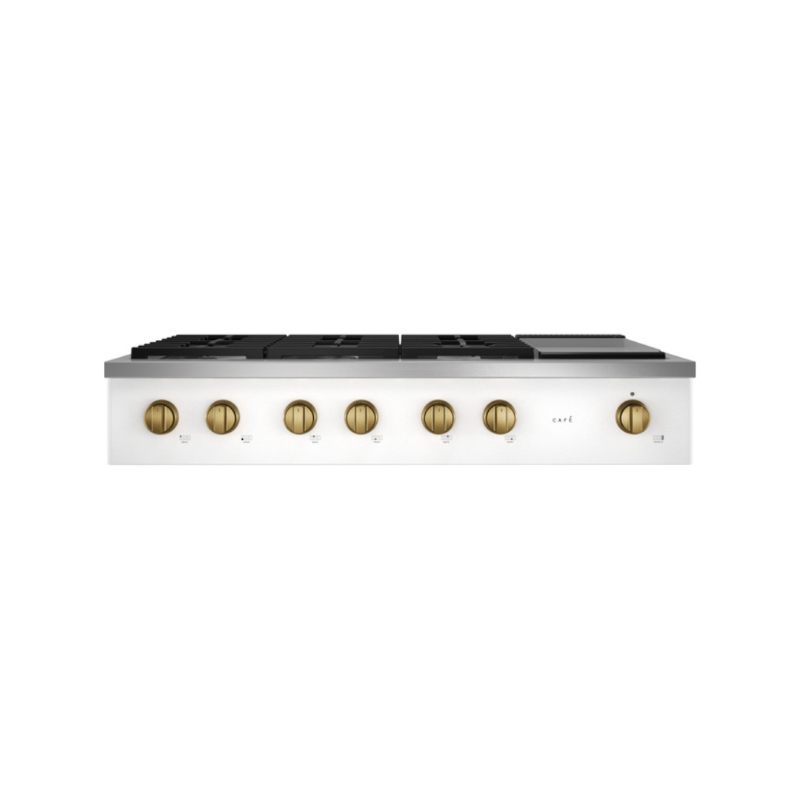

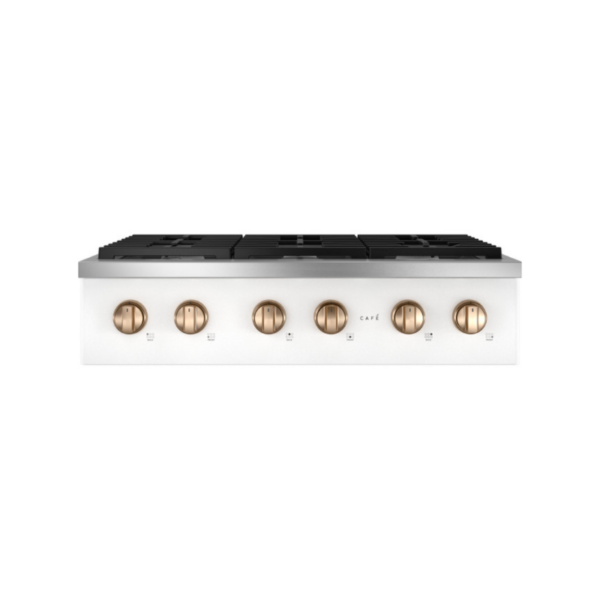

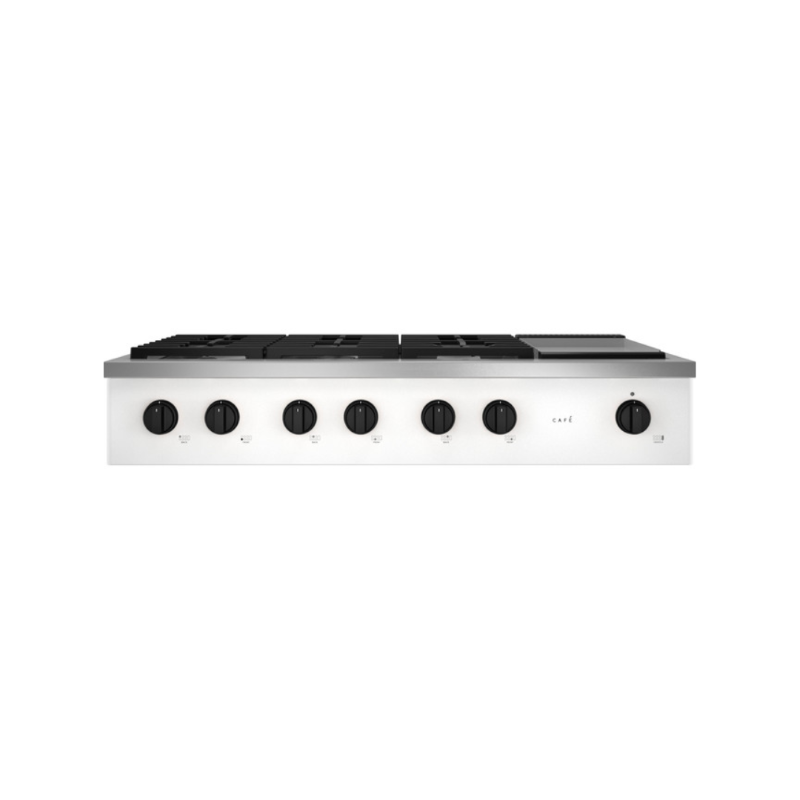

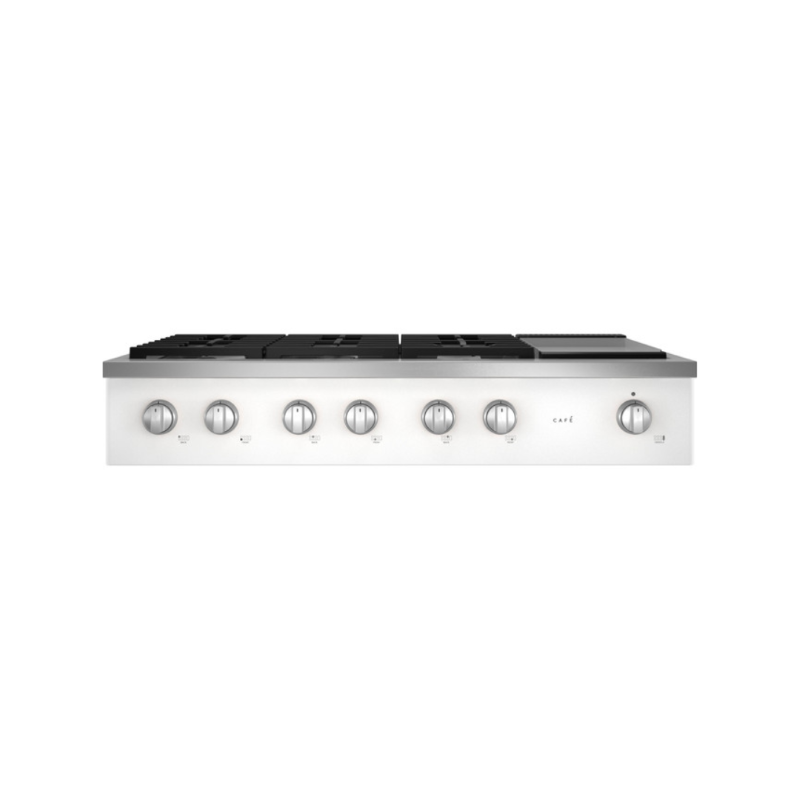

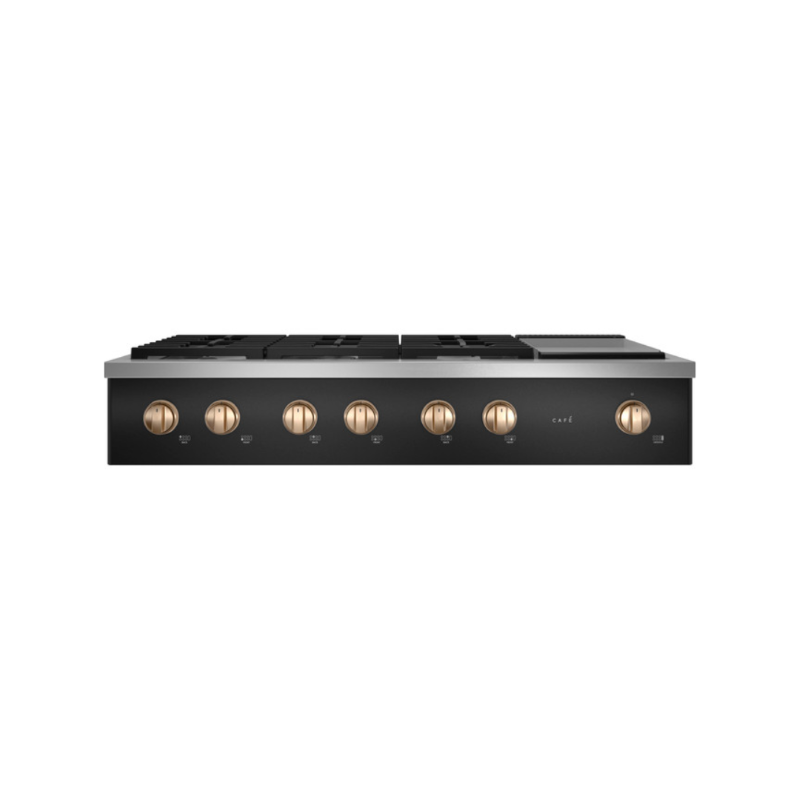

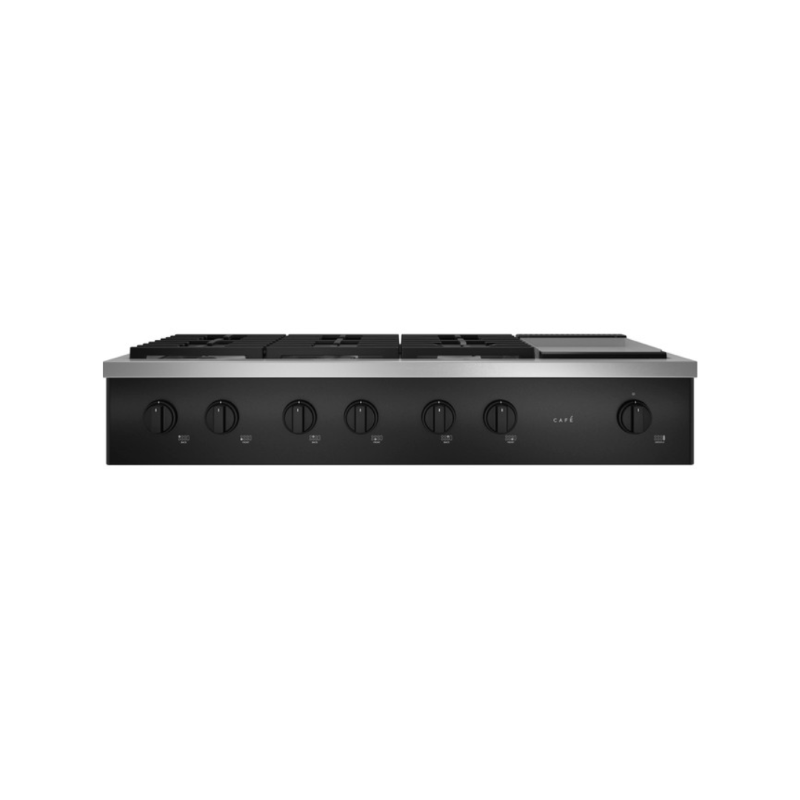

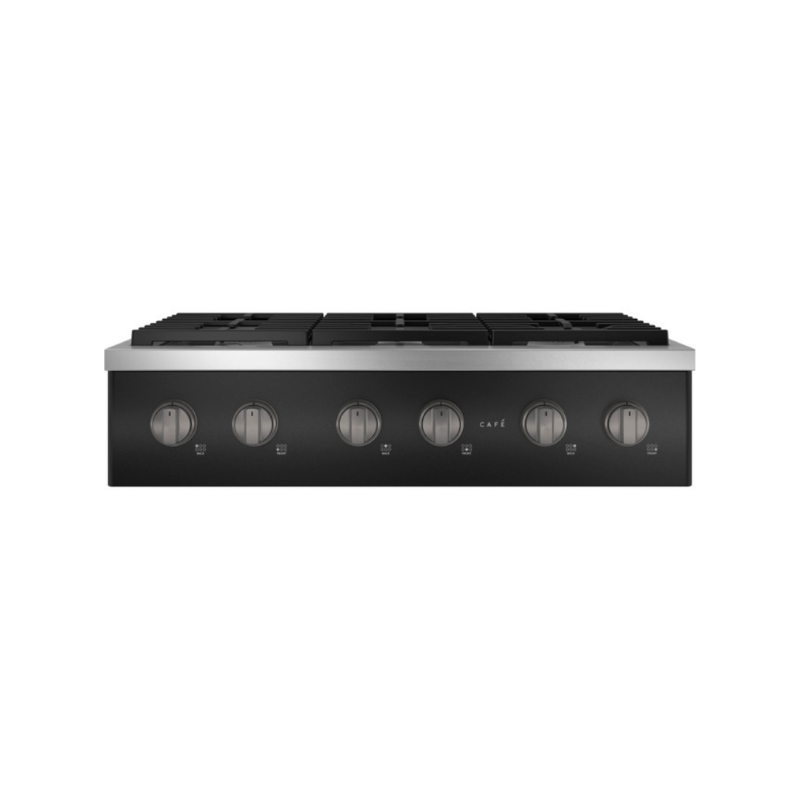

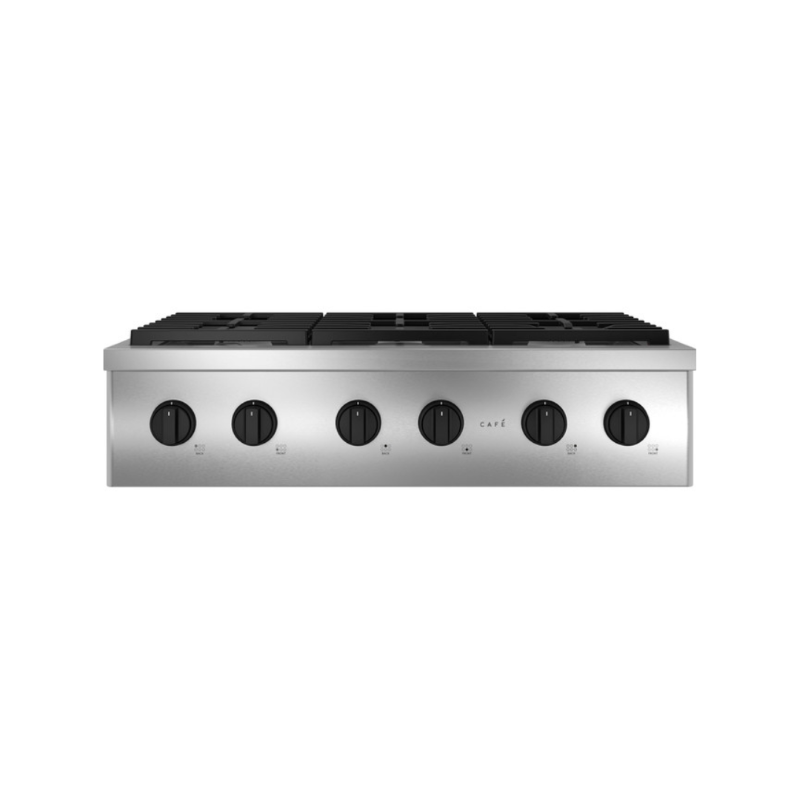

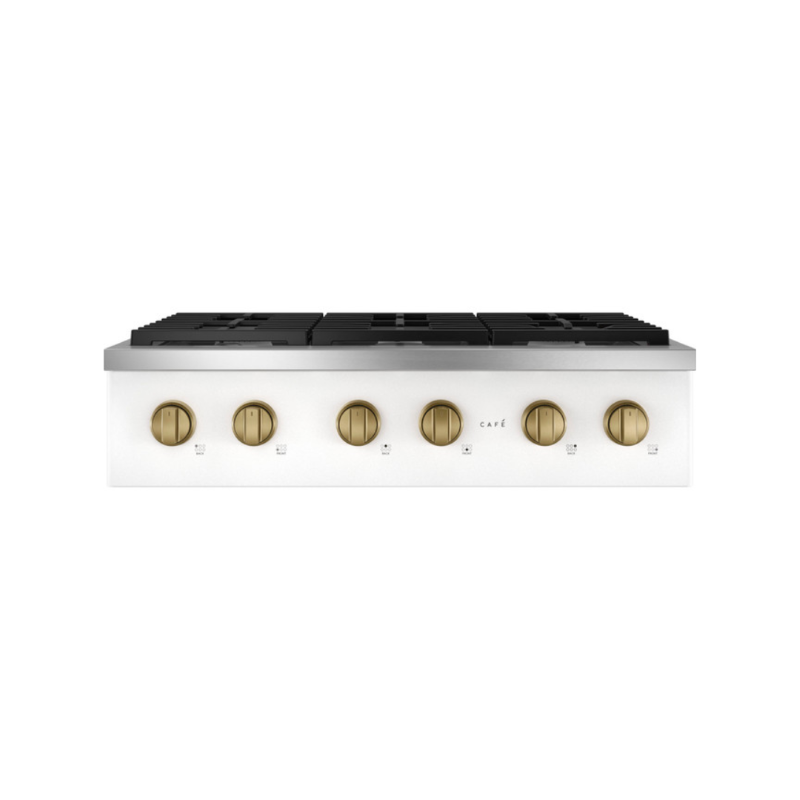

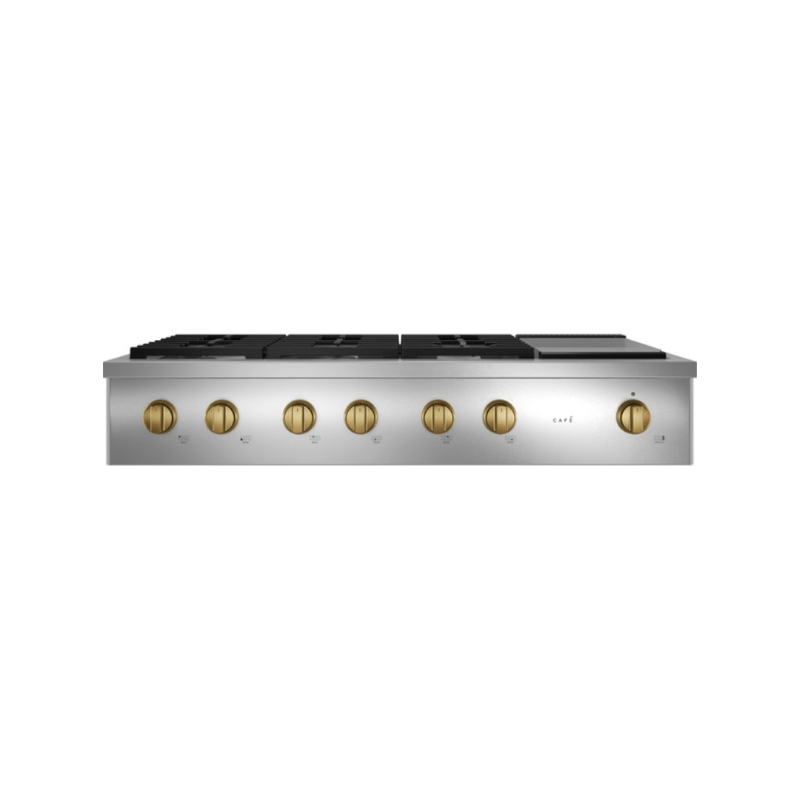

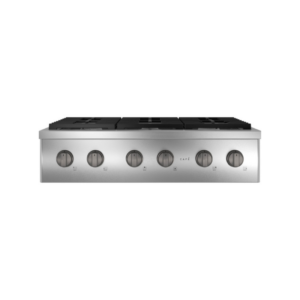

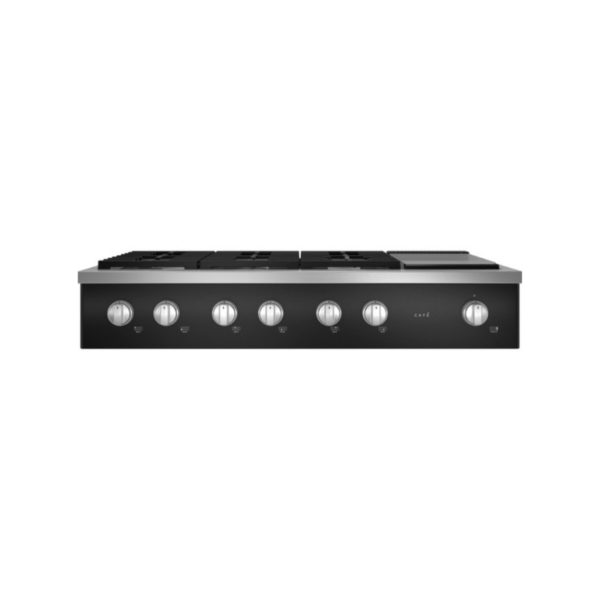

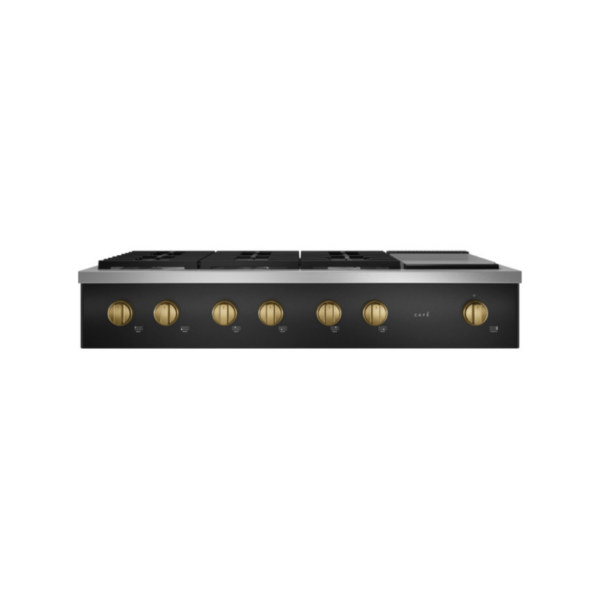

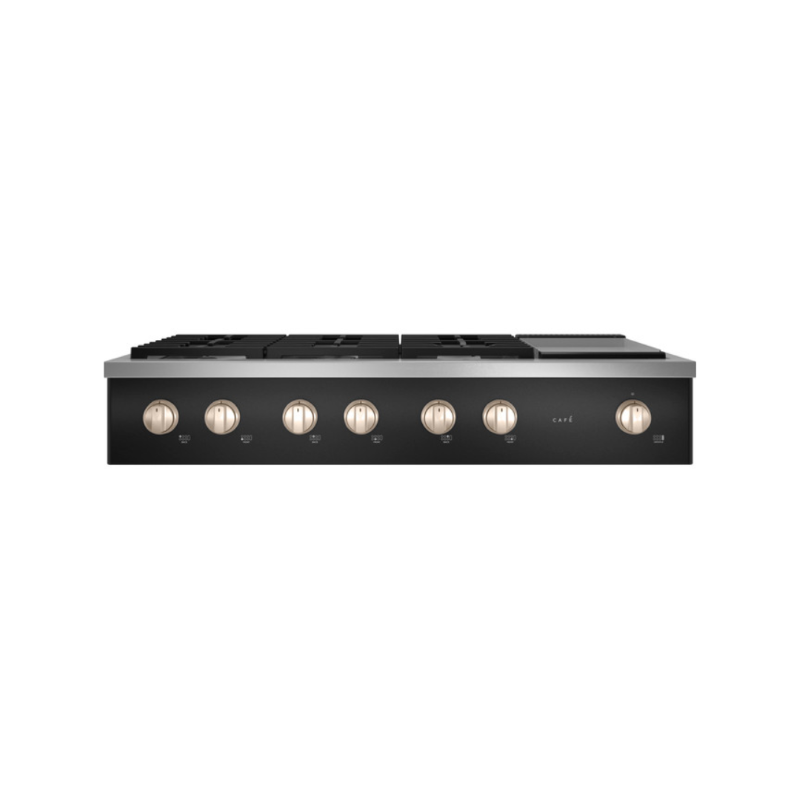

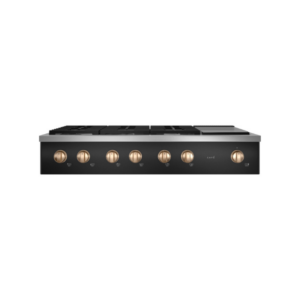

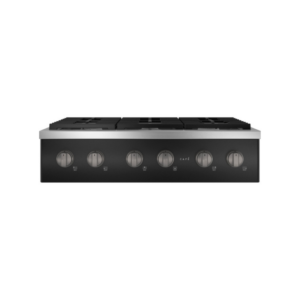

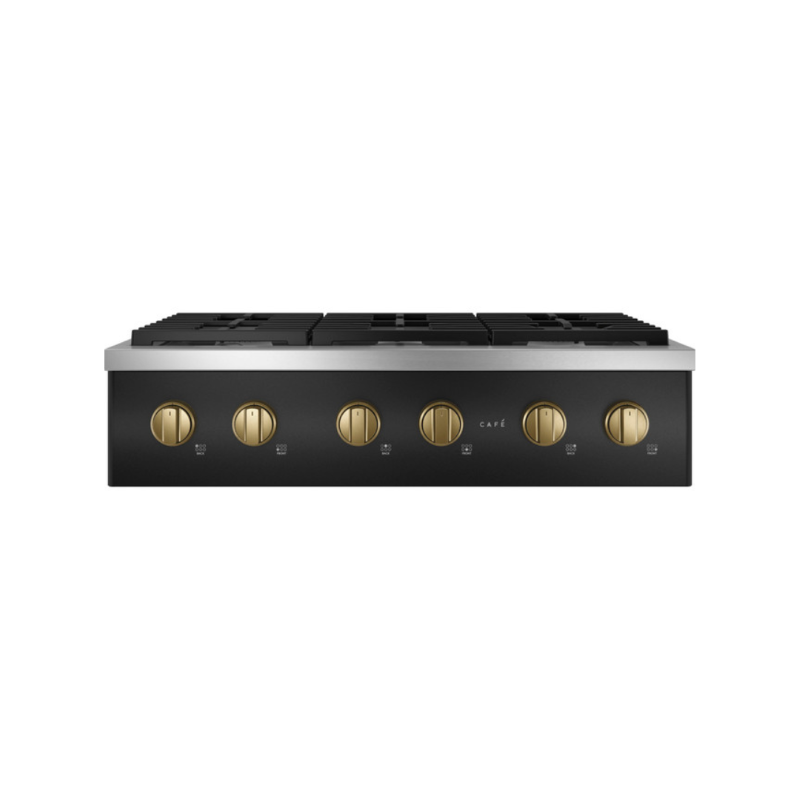

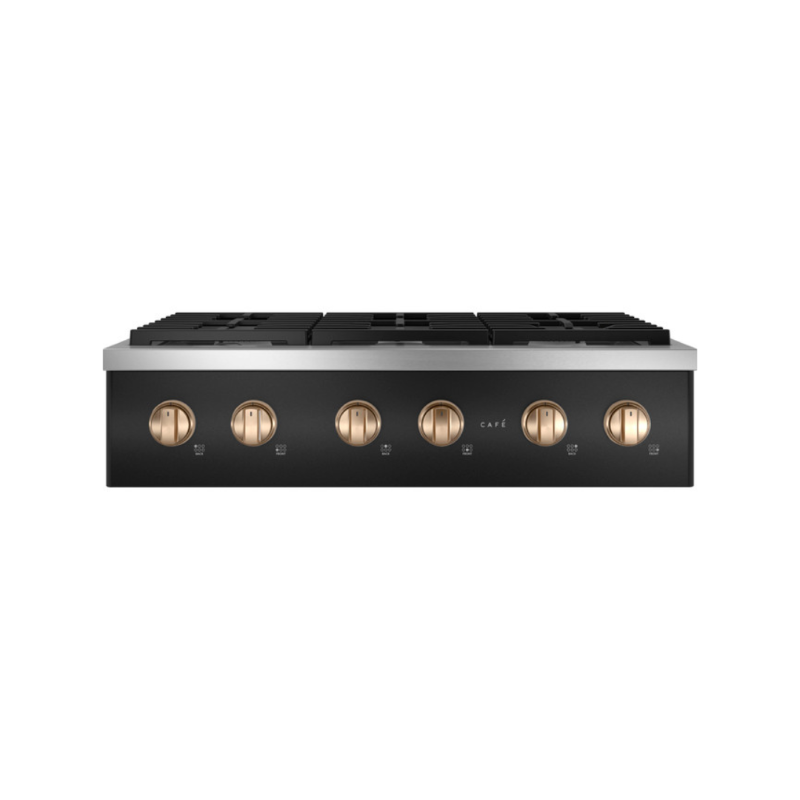

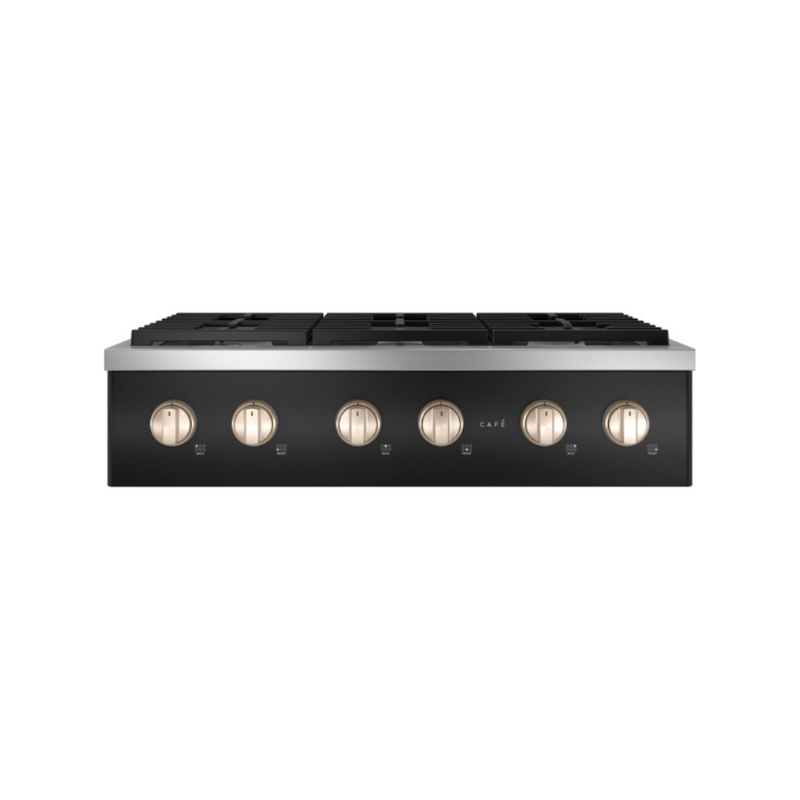

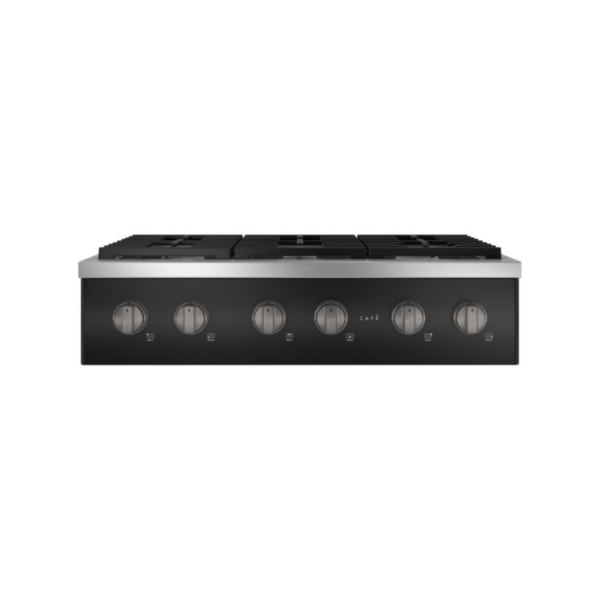

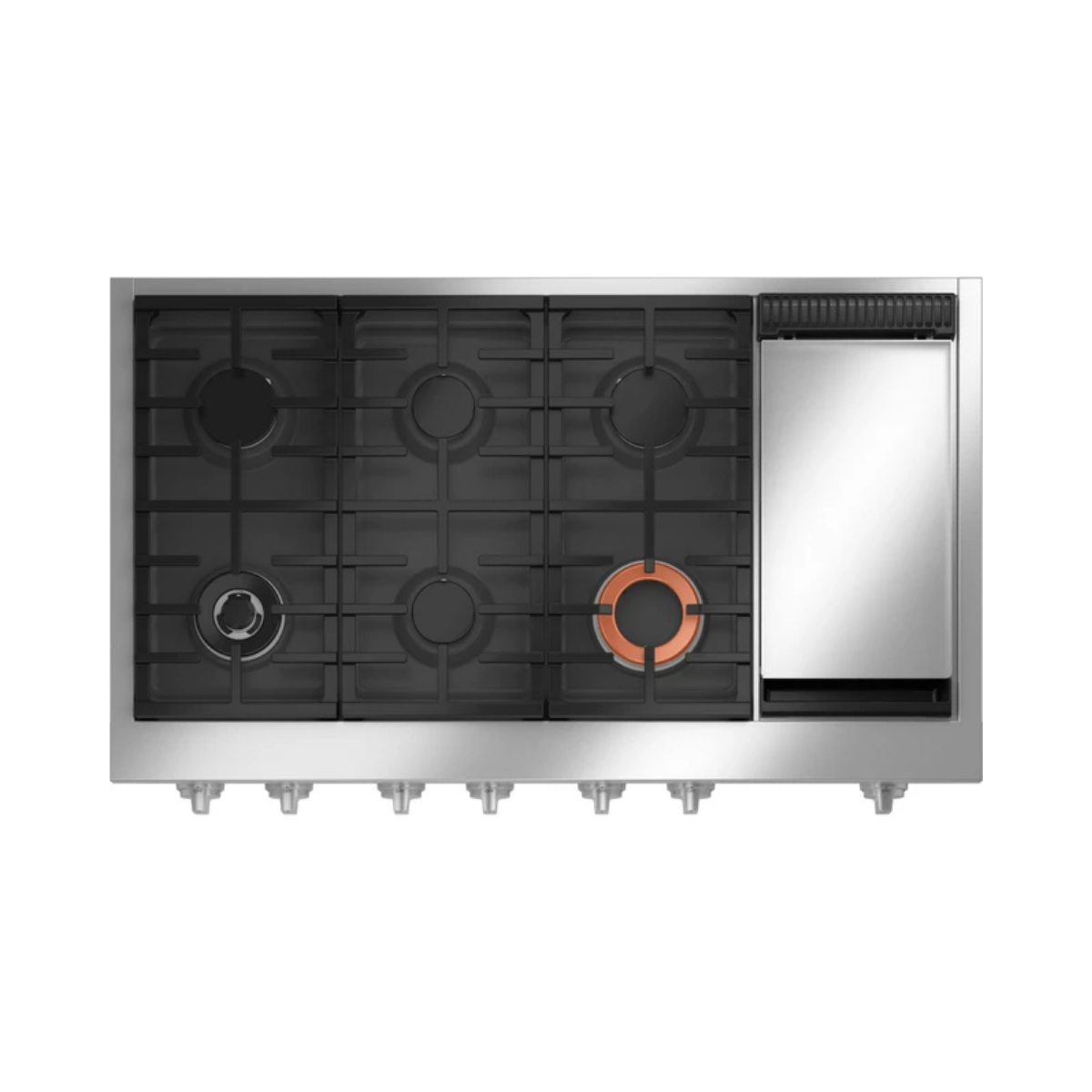

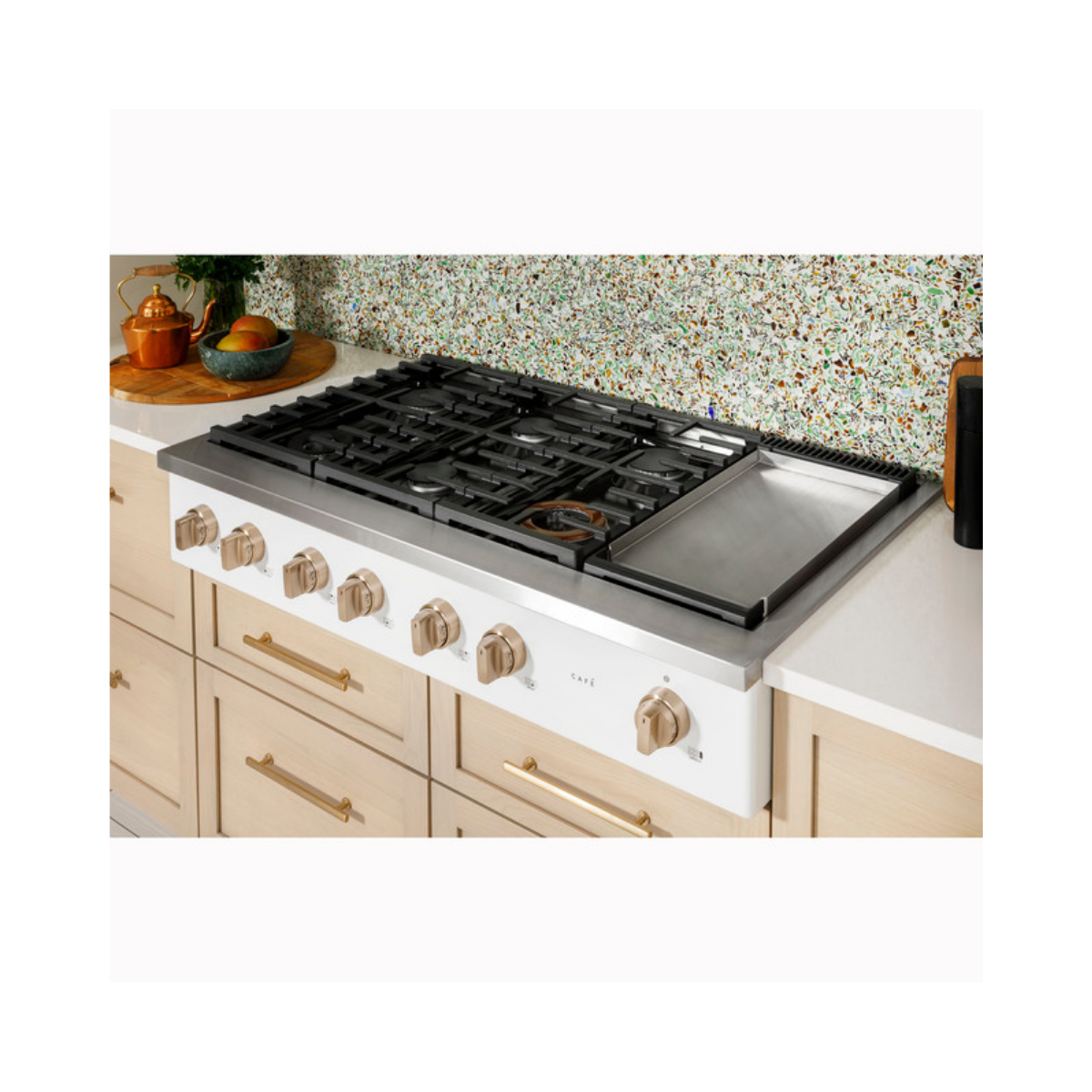

The rangetop is available in two sizes. The 36 inch size has six burners on its own. The 48 inch size has the same six burner layout plus a built-in 18,000 BTU stainless steel and aluminum clad griddle with an integrated thermostat that automatically holds a set temperature, along with a griddle indicator light. Both sizes are factory set for natural gas with an LP conversion kit included, and both come with a factory installed island backguard. Each size is available in matte white, stainless steel, and matte black finishes, all with matte black cast iron grates.
Key Features
- Six sealed burners including a 21,000 BTU multi-ring burner and two 18,000 BTU power boil burners
- 48 inch size adds a built-in 18,000 BTU griddle with thermostat and indicator light
- Industry exclusive Inspiral burner for even heat distribution
- Inspiral wok grate contoured for specialty cookware
- Continuous, edge to edge cast iron grates
- Color matched manifold
- Electric ignition with automatic reignition
- Dishwasher safe grates and knobs
- Manual simmer control, 1 to 9, on all burners
- Factory installed island backguard
- Available in 36 and 48 inch sizes, each in matte white, stainless steel, and matte black finishes
Size and Finish Options
| Model | Size | Finish |
|---|---|---|
| CGU366P4TW2 | 36″ | Matte White |
| CGU366P2TS1 | 36″ | Stainless Steel |
| CGU366P3TD1 | 36″ | Matte Black |
| CGU486P4TW2 | 48″ | Matte White |
| CGU486P2TS1 | 48″ | Stainless Steel |
| CGU486P3TD1 | 48″ | Matte Black |
Specifications
| Spec | 36″ | 48″ |
|---|---|---|
| Overall Dimensions (W x D x H) | 35-7/8″ x 27-1/2″ x 8-1/2″ | 47-7/8″ x 27-1/2″ x 8-1/2″ |
| Cabinet Width | 36″ | 48″ |
| Power/Voltage | 120V, 60Hz, 15A | 120V, 60Hz, 15A |
| Fuel Type | Natural gas (factory set); LP convertible, conversion kit included | Natural gas (factory set); LP convertible, conversion kit included |
| Grate Material/Finish | Heavy cast iron, matte black, porcelainized, self-clean, dishwasher safe | Heavy cast iron, matte black, dishwasher safe |
| Net Weight / Shipping Weight | 135 lb / 163 lb | 171 lb / 227 lb |
| Certifications | ADA Compliant | ADA Compliant |

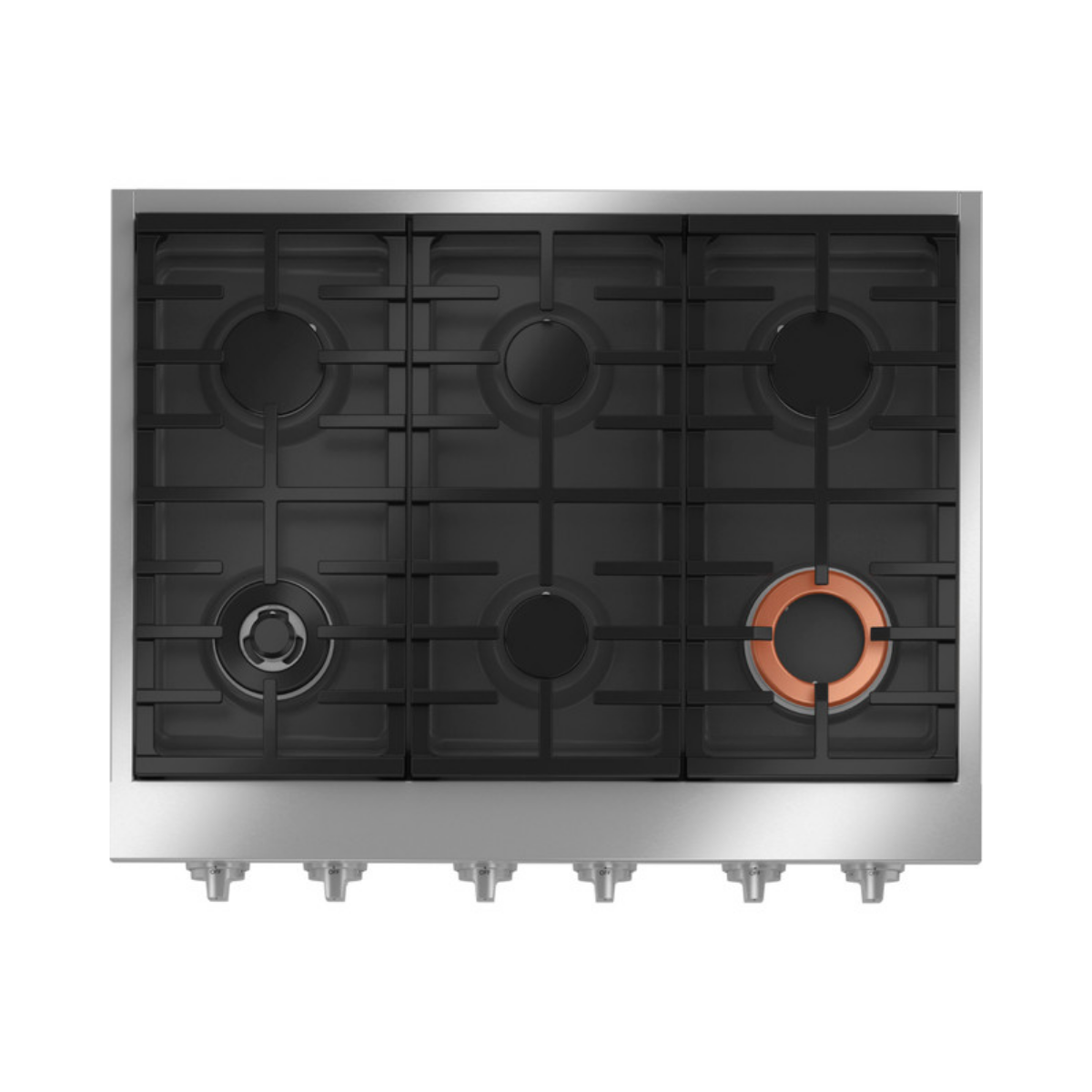

Burner Configuration
| Position | 36″ Output | 48″ Output |
|---|---|---|
| Left Front | 21,000 BTU (Multi-Ring) | 21,000 BTU (Multi-Ring) |
| Left Rear | 18,000 BTU | 18,000 BTU |
| Right Front | 10,000 BTU | 10,000 BTU |
| Right Rear | 18,000 BTU | 18,000 BTU |
| Center Front | 12,000 BTU | 12,000 BTU |
| Center Rear | 12,000 BTU | 12,000 BTU |
| Griddle | Not available | 18,000 BTU, thermostat controlled |
What’s Included
LP conversion kit and factory installed island backguard on both sizes.
Optional accessories, 36″: reversible griddle/grill (UXPRRGG), 12″ stainless steel backsplash (UX12B36PSS), 30″-36″ adjustable stainless steel backsplash with warming shelf (UXADJB36PSS), high altitude natural gas kit (WB28X39728), high altitude LP kit (WB28X39729), knob accessory kits in brushed bronze, brushed stainless, brushed black, brushed copper, brushed brass, and flat black.
Optional accessories, 48″: reversible griddle/grill (UXPRRGG), 48″ professional 12″ backsplash (UX12BS48PSS), 30″-36″ adjustable stainless steel backsplash with warming shelf (UXADJB48PSS), high altitude natural gas kit (WB28X39728), high altitude LP kit (WB28X39729), knob accessory kits in brushed bronze, brushed stainless, brushed black, brushed copper, brushed brass, and flat black.
Warranty
Limited 1-year warranty on entire appliance (parts and labor). See full written warranty for details.
