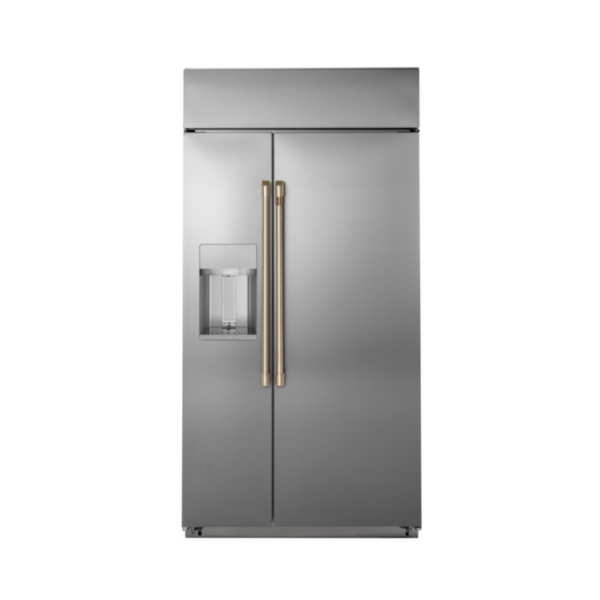

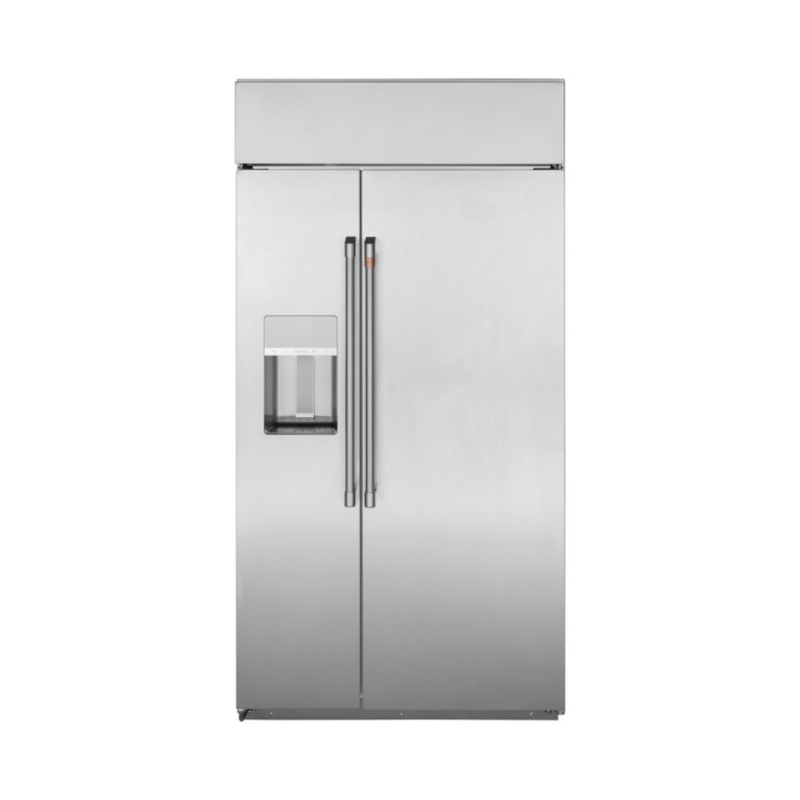

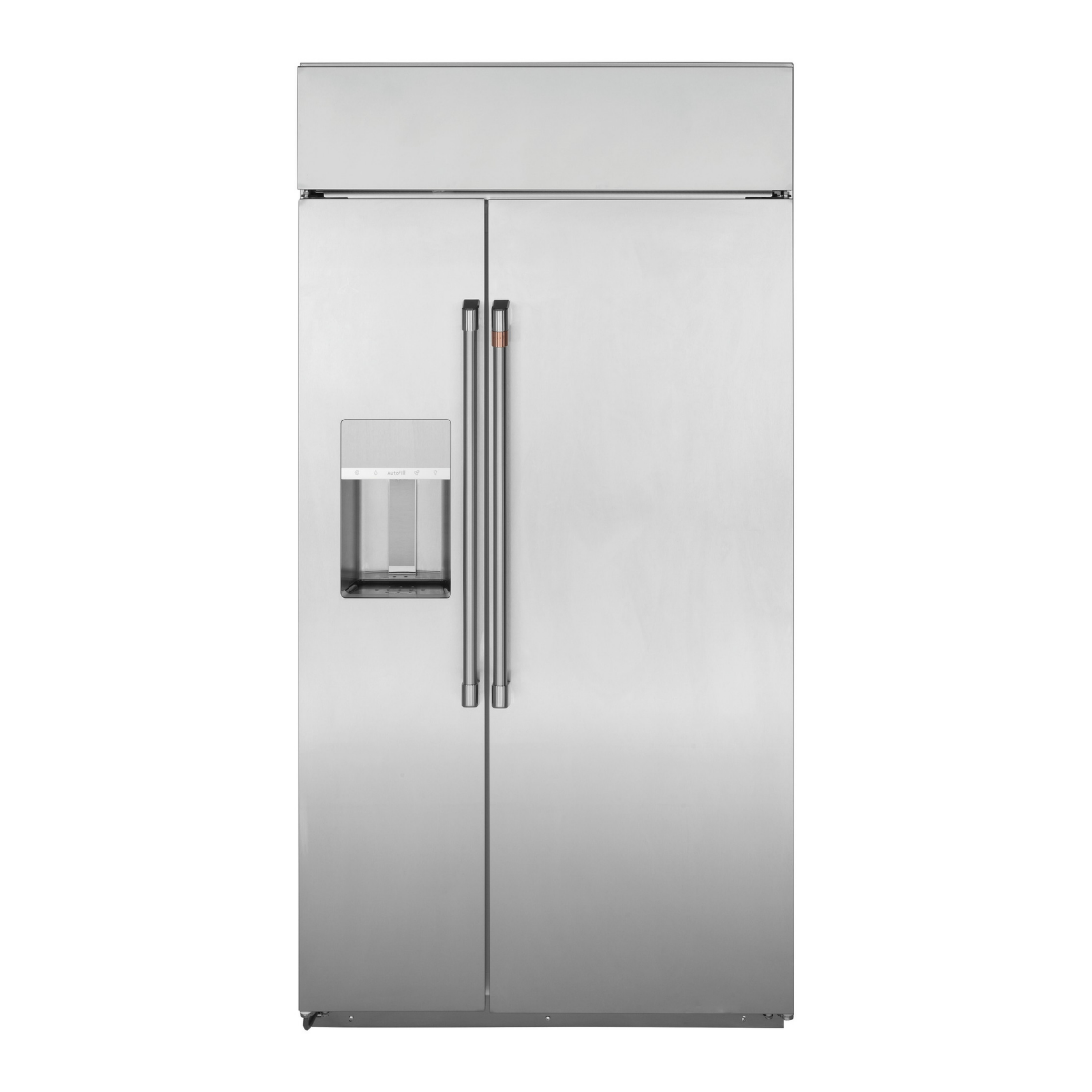

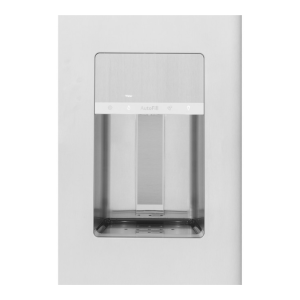

This Café built-in side-by-side refrigerator brings a premium, front-and-center look to the kitchen with an external large stainless steel dispenser for cubed ice, crushed ice, and filtered water. A Hands-Free Auto Fill button uses sensors to dispense the perfect amount every time without needing to hold a container in place. Showcase LED lighting is positioned throughout the interior to spotlight food and containers like a gallery display, and adjustable slide-out spillproof glass shelves shift and lock into place, with raised edges to contain spills for stress-free cleanup.
Large, adjustable door bins free up shelf space for small items, and an advanced temperature management system with a Multi-Shelf Air Management Tower and independent temperature controls keeps food at a consistent temperature throughout the cabinet. Four repositionable wire freezer shelves accommodate an array of frozen items, and a built-in ice maker lets ice be scooped straight from the freezer or dispensed through the door. Clear Lexan bins and pans keep contents visible, and automatic defrost helps maintain performance over time.
Built-in WiFi connects to provide a helpful alert when there’s an unexpected change in performance, such as a drop in temperature if a door is left open or power is lost. The refrigerator is built for a flush, built-in installation with flat doors, hidden door hinges, and a Café handle design, and it’s available in 42 inch and 48 inch widths, both in Stainless Steel with Brushed Stainless handles.
Key Features
- External large stainless steel dispenser for cubed ice, crushed ice, and filtered water
- Hands-Free Auto Fill button with sensor-based dispensing
- Showcase LED lighting throughout the interior
- Adjustable slide-out spillproof glass shelves with raised edges
- Large, adjustable door bins including gallon storage
- Multi-Shelf Air Management Tower with independent temperature controls
- Four repositionable wire freezer shelves
- Built-in ice maker with door dispensing
- Clear Lexan bins and pans
- Built-in WiFi with performance alerts

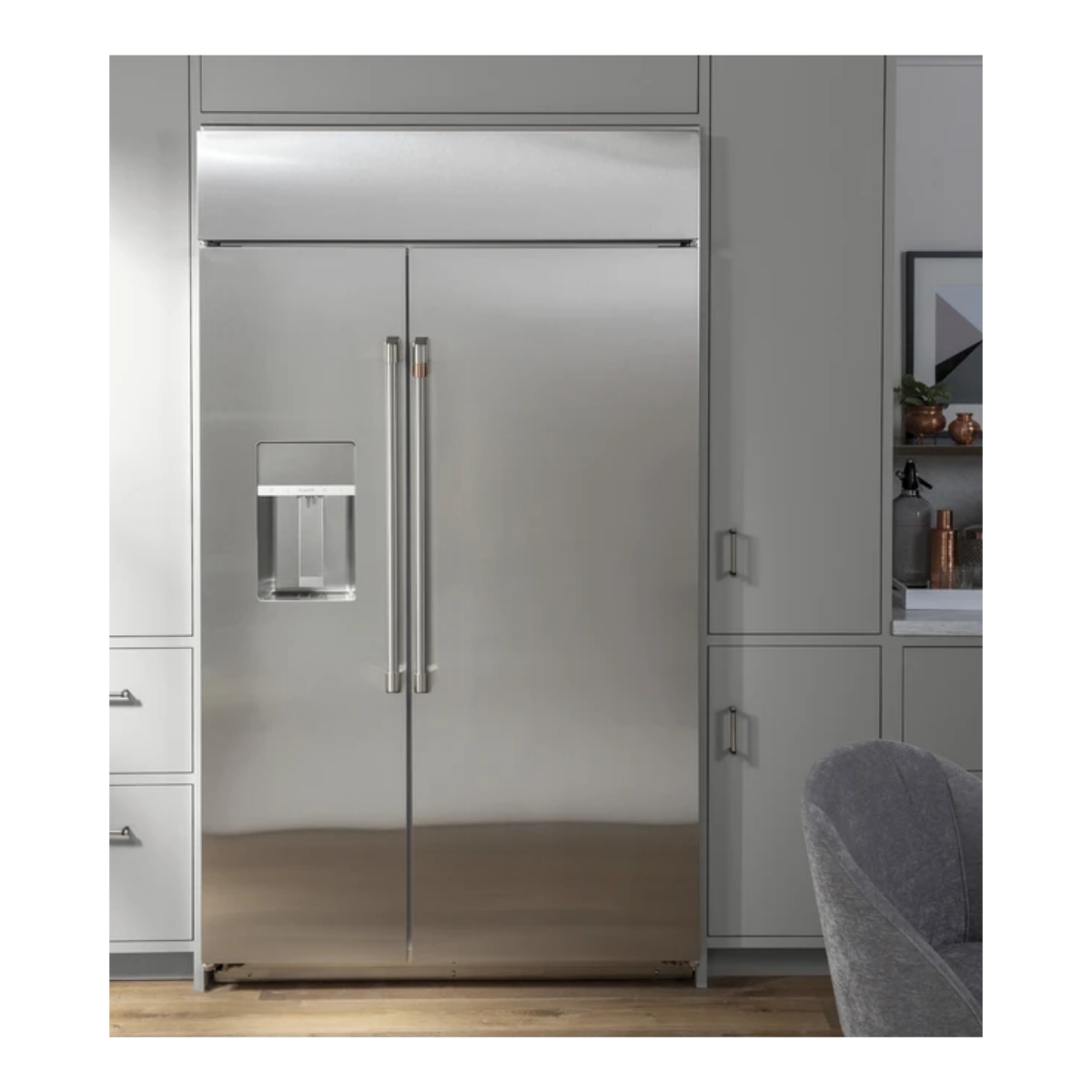

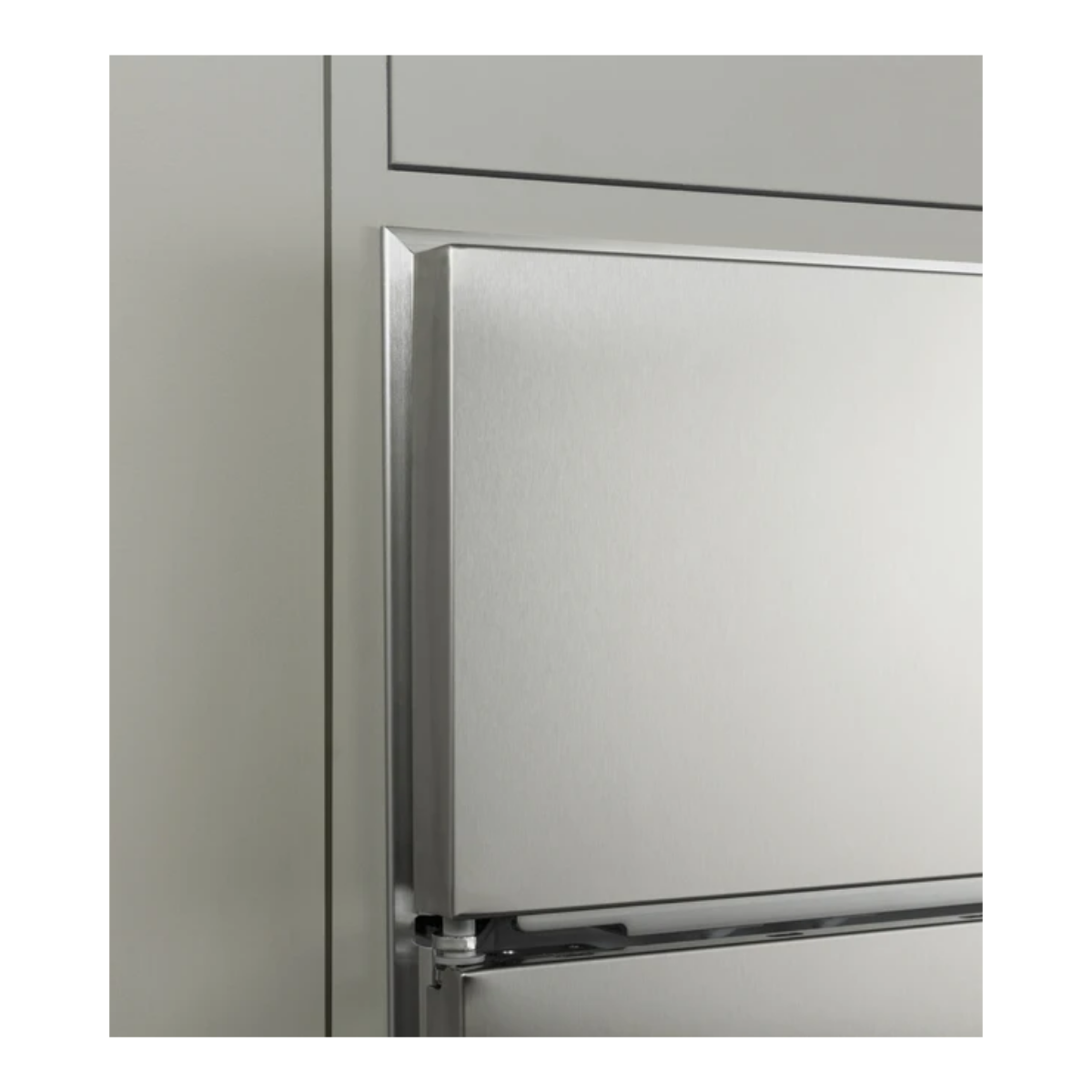

- Flush, built-in installation with hidden door hinges
- Available in 42 inch and 48 inch widths
Size Options
| Model | Width | Total Capacity |
|---|---|---|
| CSB42YP2NS1 | 42″ | 24.5 cu ft |
| CSB48YP2NS1 | 48″ | 28.7 cu ft |
Specifications
| Spec | 42″ (CSB42YP2NS1) | 48″ (CSB48YP2NS1) |
|---|---|---|
| Total Capacity | 24.5 cu ft | 28.7 cu ft |
| Fresh Food Capacity | 15.82 cu ft | 17.23 cu ft |
| Freezer Capacity | 8.65 cu ft | 11.44 cu ft |
| Overall Dimensions (W x H x D) | 42″ x 84″ x 28-1/2″ | 48″ x 84″ x 28-1/2″ |
| Case Depth Without Door | 23-1/2″ | 23-7/8″ |
| Depth with Fresh Food Door Open 90° | 50-1/4″ | 52-1/2″ |
| Depth Without Handle | 25-3/4″ | 25-3/4″ |
| Height to Top of Case | 83-1/2″ | 83-1/2″ |
| Width w/Door Open 90° incl. Handle | 47″ | 55-1/4″ |
| Width w/Door Open 90° Less Handle | 43-3/8″ | 49-3/8″ |
| Net Weight / Shipping Weight | 688 lb / 725 lb | 738 lb / 775 lb |
| Control Type | Upfront Electronic Digital Temperature Display | External Electronic Temperature Controls |
| Filter Location | Upper Right Corner | Behind Top Service Panel |
| Electrical | 115V, 60Hz, 15 or 20A | 115V, 60Hz, 15 or 20A |

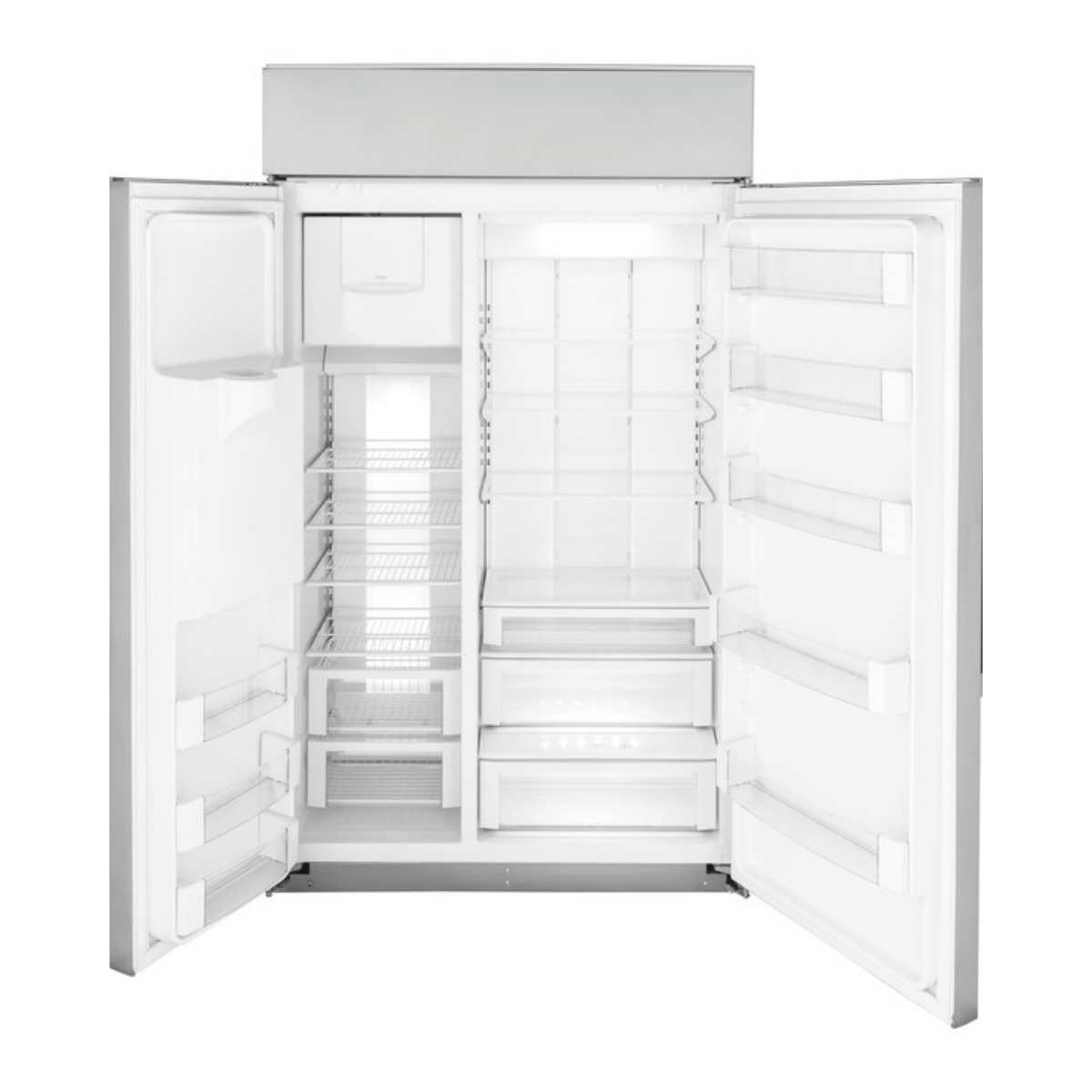

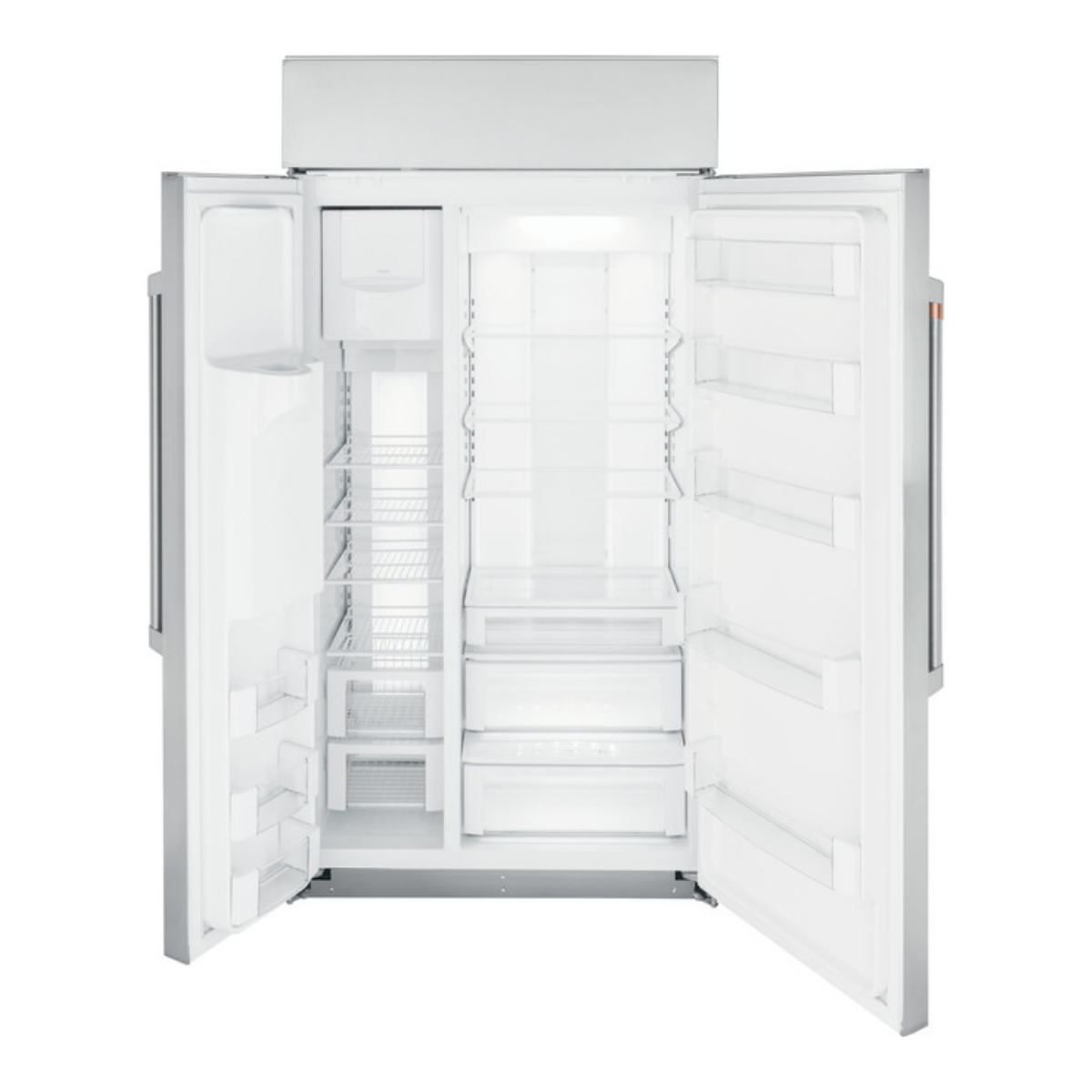

Fresh Food and Freezer Storage
| Category | 42″ | 48″ |
|---|---|---|
| Fresh Food Cabinet Shelves | 4 total, 3 adjustable | 4 total, 3 adjustable |
| Fresh Food Door Bins | 5 adjustable, 1 with gallon storage | 5 adjustable, 1 with gallon storage |
| Top Drawer | Snack drawer | Snack drawer |
| Middle Drawer | Sealed | Vegetable drawer with full-extension slide |
| Bottom Drawer | Select temp | Sealed |
| Freezer Door Bins | 5 total | 3 total |
| Freezer Cabinet Shelves | 4 total, wire, 4 adjustable | 4 total, wire, 4 adjustable |
| Freezer Baskets | 2 wire, full-extension | 2 wire, full-extension |
What’s Included
Factory installed icemaker, GE 6-month water filter.
Optional Accessories

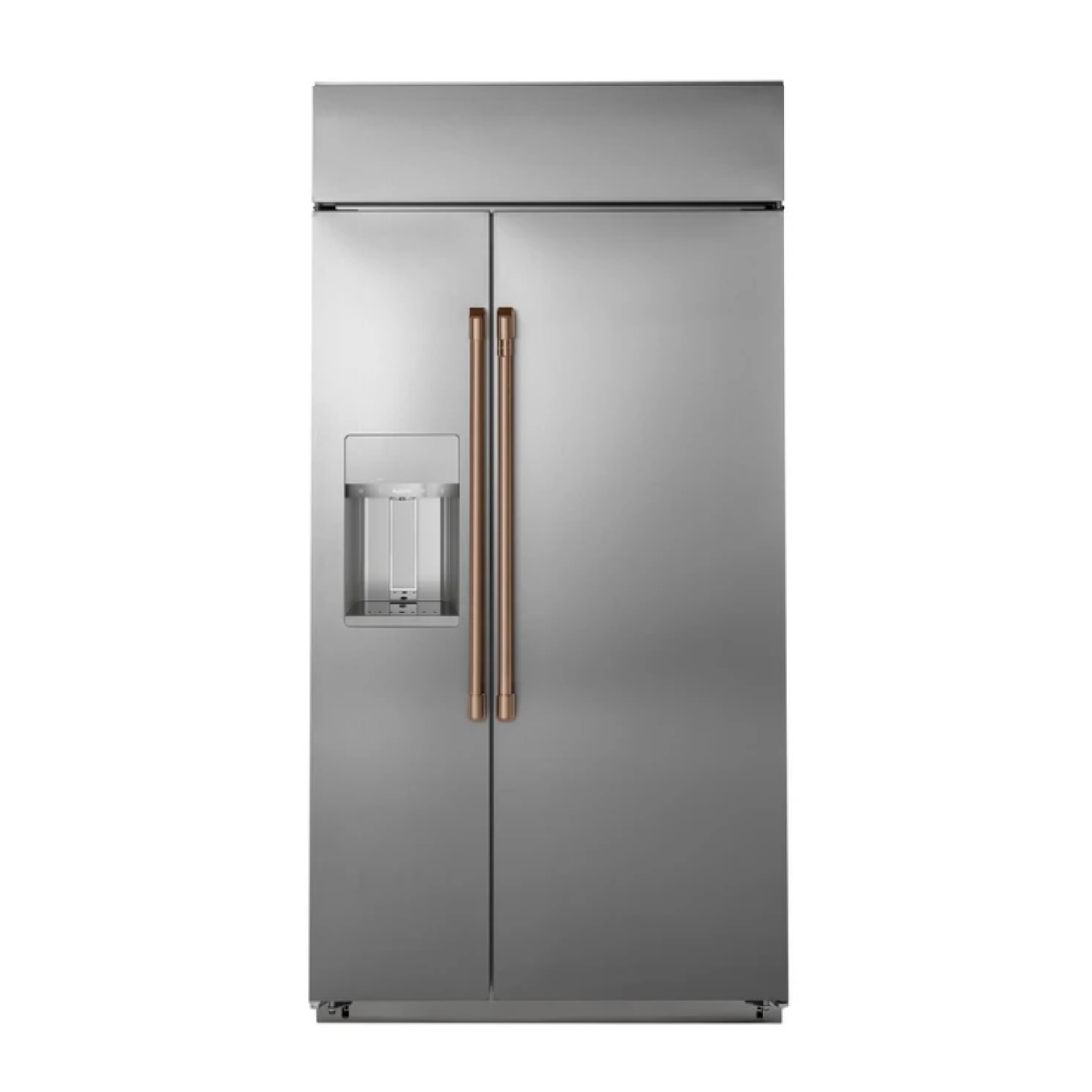

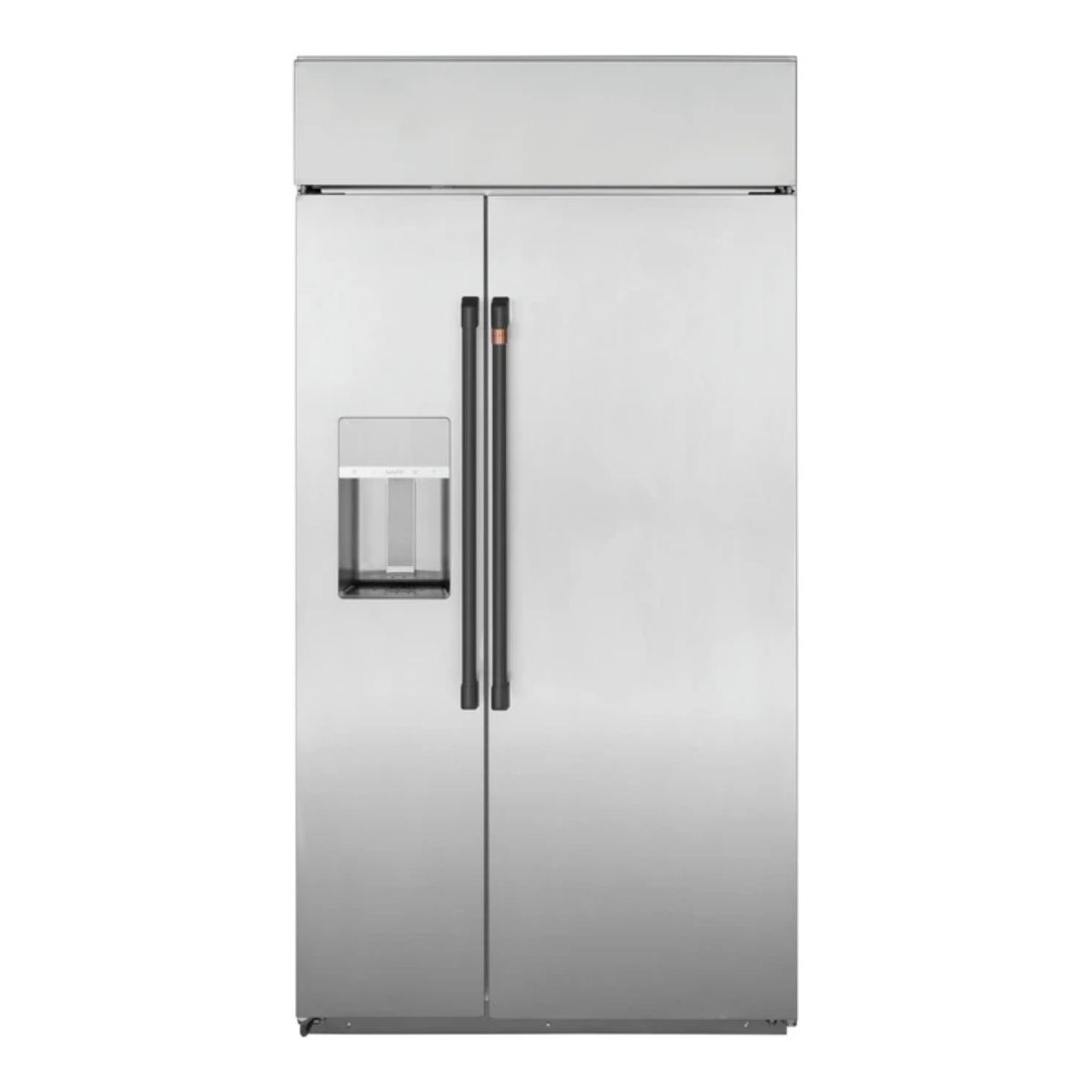

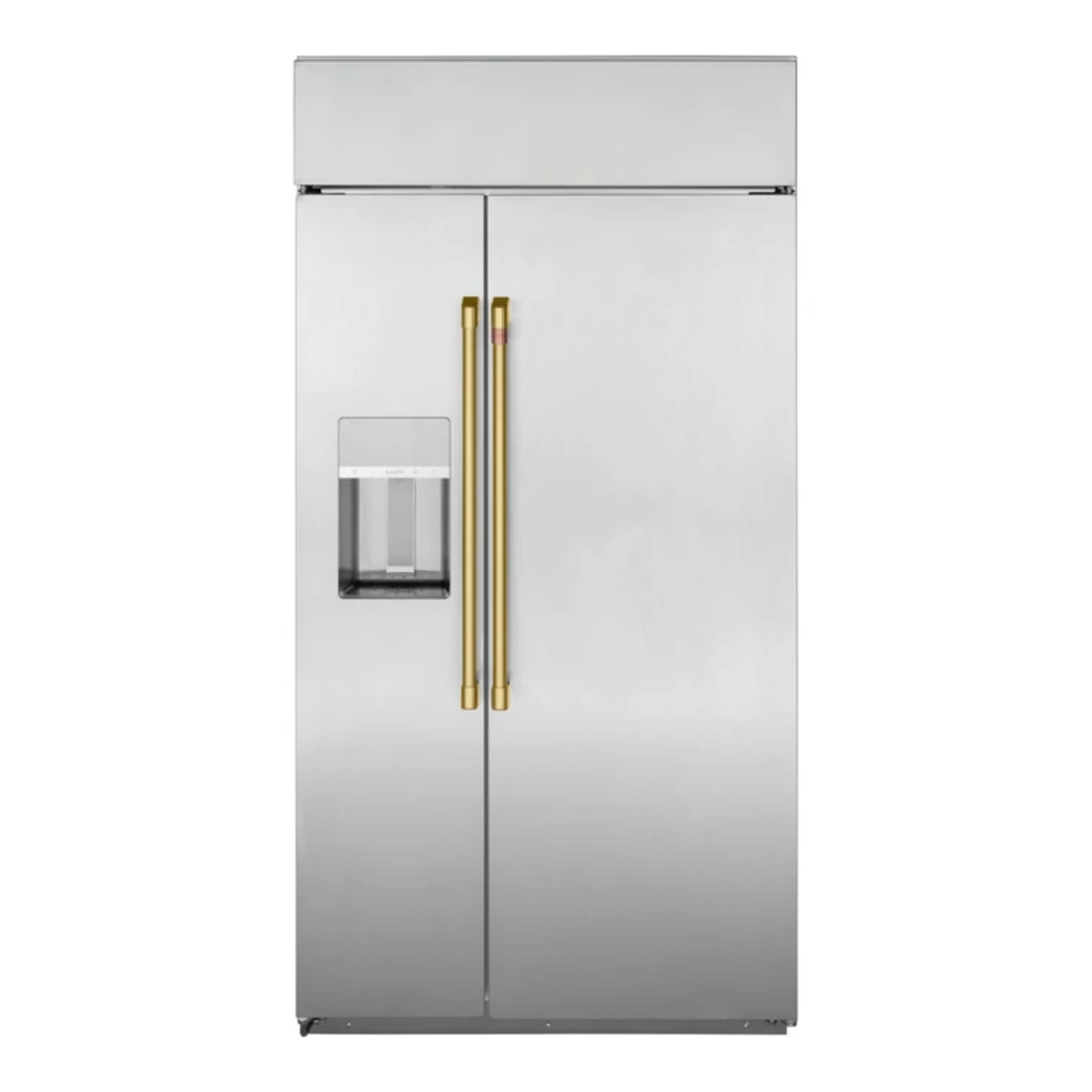

Handle color kits available in brushed bronze (CXSS2H2PMBZ), brushed black (CXSS2H2PMBT), brushed copper (CXSS2H2PMCU), brushed brass (CXSS2H2PMCG), and flat black (CXSS2H2PMFB), each with 2 handles.
Warranty
Limited 1-year warranty on entire appliance (parts and labor); limited 5-year warranty on the sealed refrigerating system. See full written warranty for details.
